Diagnostix
Operational yield assessment, automated.
Diagnostix is the post-construction yield assessment SaaS platform developed by Anemona. This tool is accessible to
anyone who needs to know how an operating wind farm is really performing and why.
01
What you upload, what you get
You upload
- 10-minute SCADA data
Optional
- Farm layout
- Power and thrust curves
- Meter data
Once the SCADA data is loaded, Diagnostix:
- ingests and cleans it automatically.
- handles the hindcast data.
- applies a long-term correction to give a long-term yield estimate.

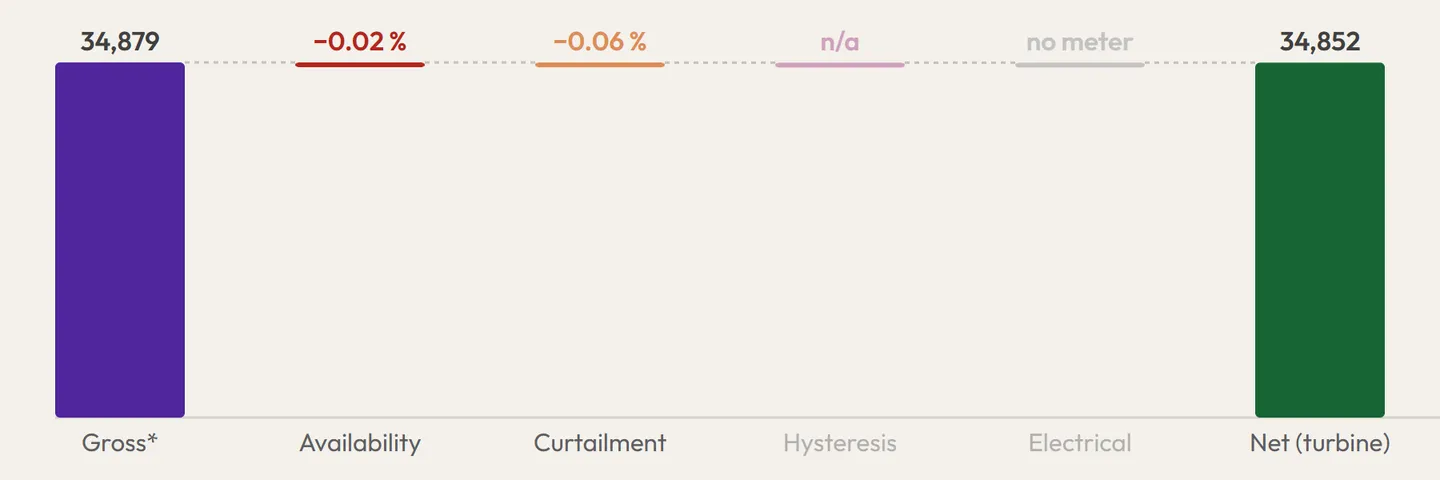

- breaks down losses by category (availability, curtailment, electrical).
- produces a transparent, auditable technical report.
You get
- Long-term operational P50
- Electrical loss, availability and curtailment estimates
- Evolution of the operational P50
- Operational monitoring assessment
Diagnostix performs these tasks in a matter of a few minutes only. More importantly, each step can be run manually for those who want to fine tune the modelling or fully automated for a non-technical audience.
02
Upload SCADA. Get a P50.
Step 1
Upload
Basic mode
Straight from upload to results.
Advanced mode
You choose the methods at each step.
Step 2
Clean and synthesise

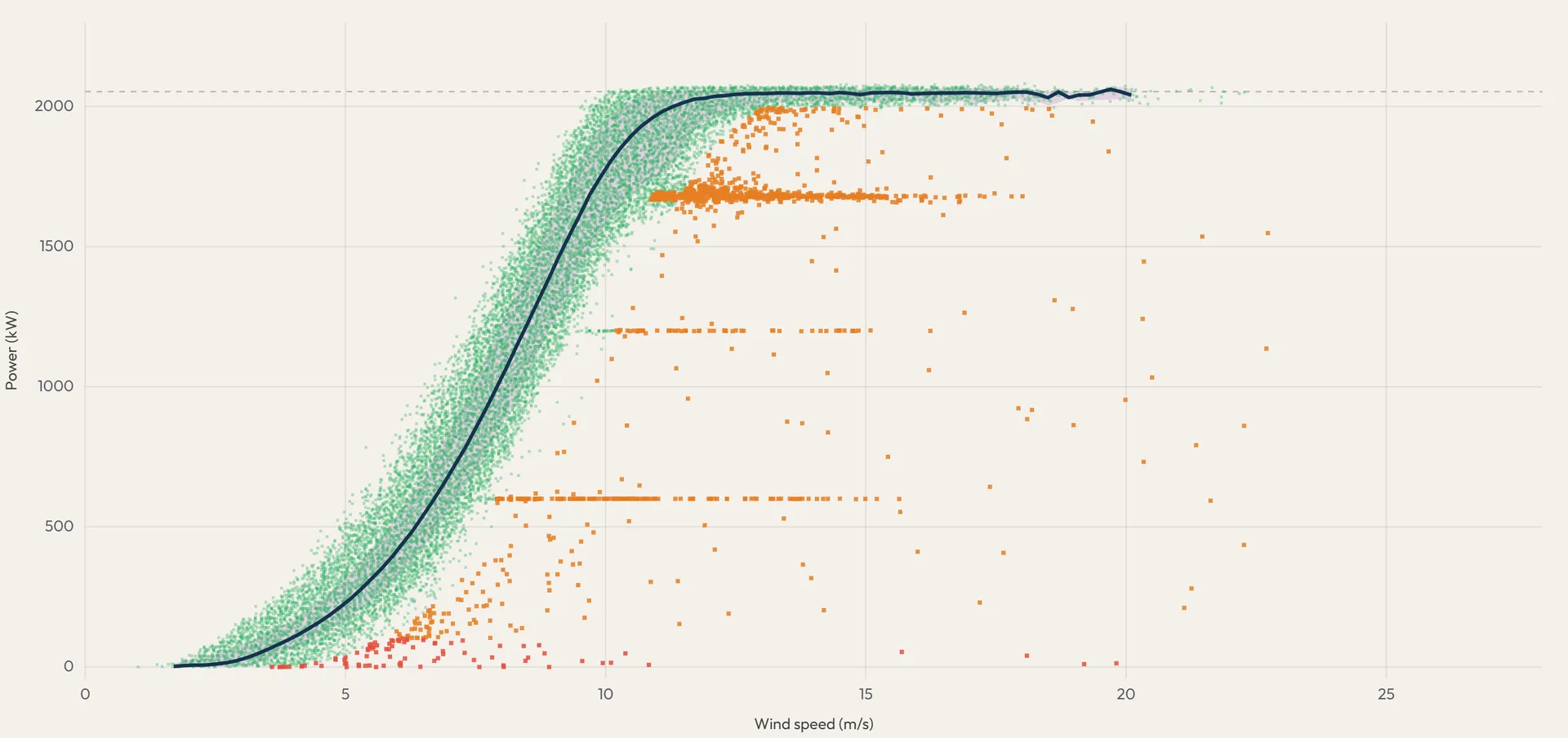

- Choose automated and/or rule-based flagging
- Choose the synthesis method
Step 3
Correlate
Choose the long-term correction methods:
- Synthesis method
- Regression mode
- Averaging period
- Coverage floor
- Air-density correction
Step 4
Results
03
Excerpts

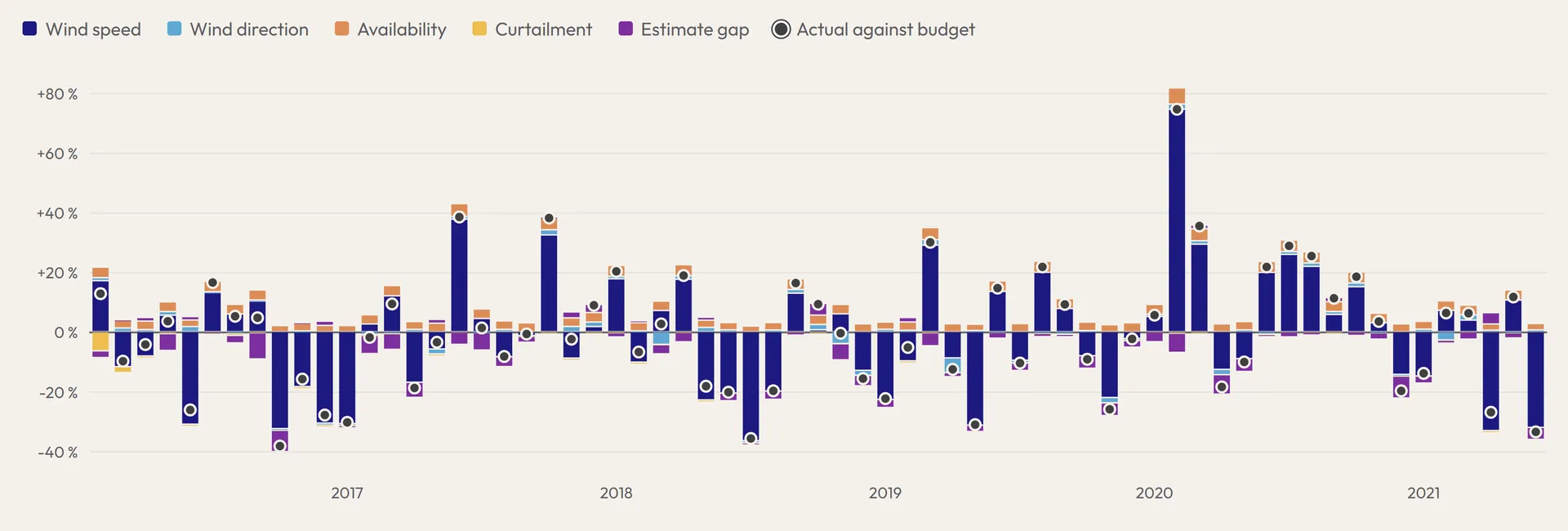

Diagnostix also enables you to understand the monthly / quarterly deviations (positive or negative) between pre-construction yield estimates and operational performance.
